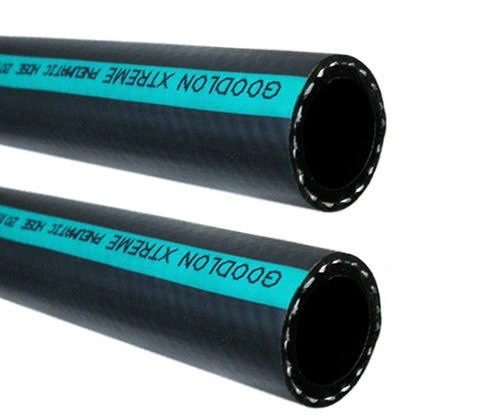

THERMOPLASTIC RUBBER HOSE
Air / Pneumatic
Structure
Top quality PVC Blended with synthetic rubber and also reinforced with high tenacity nylon twisted yarn. Flexibility maintained at low temperature, better oil and temp resistance than rubber hose, makes this hose a better replacement to PVC Braided hose and conventional rubber braided hose. Replaces all applications under PVC Braided Hoses – Transparent (Heavy Duty).
- Weather Resistant
- Nylon Reinforced
- Air / Pneumatic / Rock Drill / Chemical Pesticide spray
Applications
In case you are looking for a tough quality Heavy Duty PVC Braided hose which is flexible like rubber hose but will have all advantages of PVC and Rubber, still with better service life, this is the right product to choose. This product is superior to all textile rubber braided hoses like Air / Pneumatic / Water /Welding / Car washing.
Pressure at 30℃
Bursting Pressure 100kg/cm2 (6 mm to 25 mm)
Bursting Pressure 50kg/cm2 (31, 38, 50 mm )

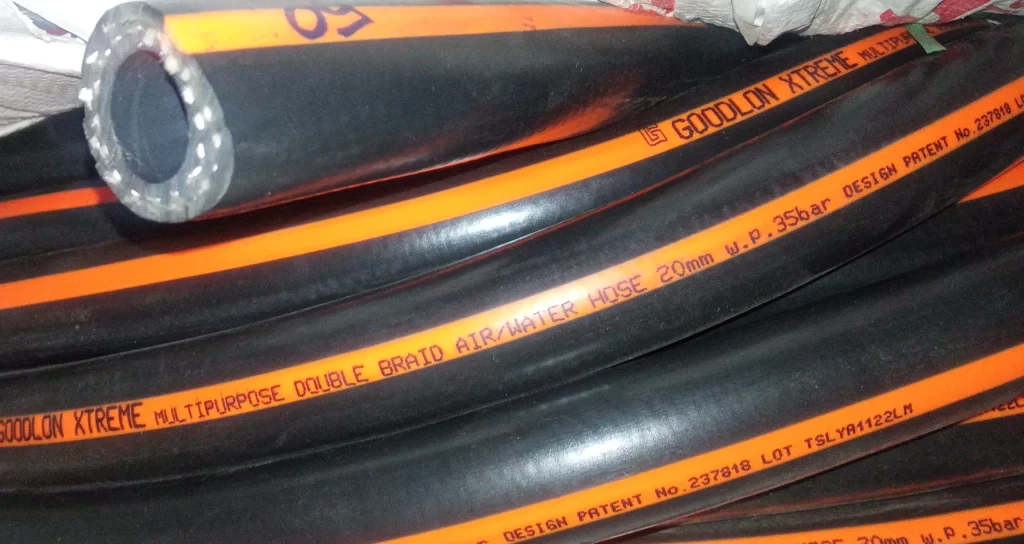

MULTIPURPOSE DOUBLE BRAIDED HOSE
AIR / PNEUMATIC
- Highly Flexible Double Braided Hose
- Super Strong, very durable
Technical Data
THERMOPLASTIC RUBBER HOSE Air / Pneumatic
| I.D. Ø (mm) | Wall Thickness (mm) | Working Pressure (kg/cm2) | Standard Length (m) |
|---|---|---|---|
| 6 | 3.5 | 22 | 100 |
| 8 | 3.8 | 22 | 100 |
| 10 | 3.8 | 22 | 100 |
| 12.5 | 4.0 | 18 | 100 |
| 16 | 4.0 | 18 | 100 |
| 20 | 4.8 | 18 | 100 |
| 25 | 5.0 | 18 | 100 |
| 31 | 6.0 | 14 | 50 |
| 38 | 6.5 | 14 | 50 |
| 50 | 6.5 | 14 | 50 |
MULTIPURPOSE DOUBLE BRAIDED HOSE AIR / PNEUMATIC
| I.D. Ø (mm) | Wall Thickness (mm) | Working Pressure (kg/cm2) | Standard Length (m) |
|---|---|---|---|
| 8 | 5 | 45 | 100 |
| 10 | 5 | 45 | 100 |
| 12.5 | 5.5 | 45 | 100 |
| 20 | 6 | 40 | 100 |
| 25 | 6 | 40 | 100 |
