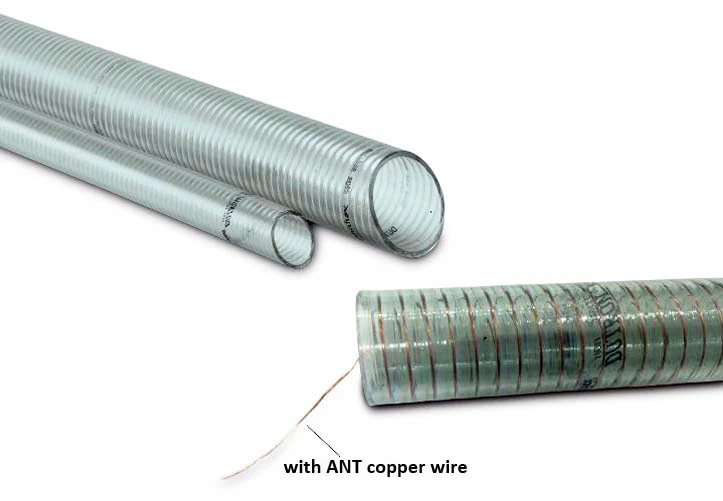

PVC NON TOXIC SUCTION HOSE
WITH ANT COPPER WIRE
FOOD GRADE
Structure
- Made from special non-toxic ingredients, that provide safe use in food products No kinking, bulging or bursting even in the most rigorous working conditions.
- No Aging
- Excellent resistance to high vacuum / pressure and external impact
- Total transparency allows one better visualization of the ticket of the products
- Its total smooth internal surface does not allow setting of residues, preventing contaminations
- In special sizes and non-toxic flexible hose with copper conductive wire for conduction of antistatic charges generated.
Applications
Suction and Discharge of beer, wine, milk, beverages, ice-cream, chocolates, peppermint, cereals and other food items. Conveying plastic granules on auto loaders (with ANT copper wire)
Pressure at 30℃
Working Pressure 3.5kg/cm2 to 7kg/cm2
Bursting Pressure 11kg/cm2 to 23kg/cm2
Temperature Range
60/70℃
Colour
Transparent
Similar Products
PVC Suction & Delivery Food Grade Hose
FLEXANT
Wall Thickness
3 to 6.5 mm
Applications
Ideal for auto loader and multilayer film plant applications
Technical Data
| I.D. Ø (mm) | Working Pressure (kg/cm2) | Bursting Pressure (kg/cm2) | Bending Radius (mm) | Standard Length (m) |
|---|---|---|---|---|
| 25 | 7 | 23 | 55 | 30/50 |
| 30 | 6.5 | 20 | 75 | 30/50 |
| 40 | 5 | 16 | 95 | 30/50 |
| 50 | 4 | 16 | 122 | 30 |
| 65 | 4 | 16 | 160 | 30 |
| 75 | 3.5 | 15 | 272 | 30 |
| 100 | 3.5 | 11 | 290 | 15/18/30 |
