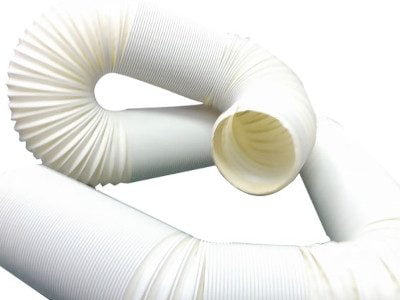

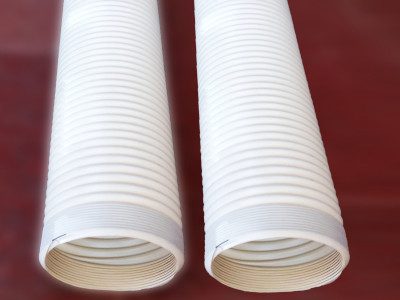

PP AIR HOSE
TEMPERATURE 80 ℃
Structure
Hose wall made of PP film and reinforced with extra strong spring steel wire. Capable of axial compression in to fixed position. A self supporting hose which can take any shape / position. Good resistance to UV and ozone, chemicals, fumes etc
Applications
Conveyance of air / dust, low temperature welding and soldering fume extraction, Chemical Fume exhaust, air conditioning and ventilation technology, printing / lamination machines and auto coner OHTC suction (Textile Machinery).
Temperature Range
-20℃ up to +80℃
Colour
Ivory
Standard Length
5 meter

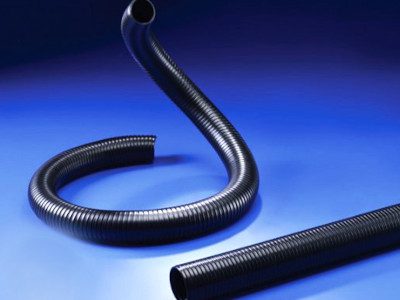

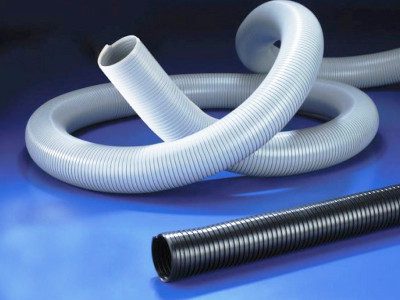

Similar Products
Technical Data
| I.D. Ø (mm) | O.D. Ø (mm) | Bending Radius (mm) | Working Pressure (bar) | Vacuum Pressure (bar) |
|---|---|---|---|---|
| 25 | 32 | 35 | 0.700 | 0.250 |
| 32 | 38 | 42 | 0.650 | 0.220 |
| 38 | 46 | 50 | 0.580 | 0.190 |
| 50 | 58 | 64 | 0.430 | 0.160 |
| 63 | 73 | 80 | 0.350 | 0.120 |
| 76 | 85 | 93 | 0.300 | 0.100 |
| 90 | 100 | 110 | 0.250 | 0.070 |
| 100 | 110 | 120 | 0.230 | 0.060 |
| 125 | 135 | 148 | 0.180 | 0.040 |
| 150 | 160 | 176 | 0.160 | 0.036 |
| 200 | 210 | 230 | 0.120 | 0.028 |
| 250 | 260 | 286 | 0.090 | 0.011 |
