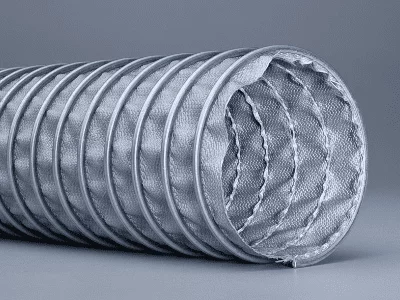

HIGH TEMPERATURE
CLIP SILICON
Temperature : -60℃ to +300℃
Structure
Light weight and very flexible Silicone ducting
Material
Silicone coated glass fabric, silver-grey
Properties
Good temperature resistance, outer wear strip, flame retardant wall, excellent axial compressibility, good UV and ozone resistance, highly flexible
Applications
Suction of hot fumes, gases or dust in all fields of industry
Temperature Resistance
-60℃ to +300℃
Standard Length
3 to 10 meters
Technical Data
| I.D. Ø (mm) | Weight (kg/m) | Wall Thickness (mm) | Bending Radius (mm) | Working Pressure (bar) | Vacuum Pressure (bar) |
|---|---|---|---|---|---|
| 50 | 0.40 | 0.4 | 30 | 0.85 | 0.32 |
| 60 | 0.50 | 0.4 | 36 | 0.68 | 0.22 |
| 76 | 0.60 | 0.4 | 45 | 0.47 | 0.14 |
| 80 | 0.62 | 0.4 | 48 | 0.43 | 0.13 |
| 102 | 0.65 | 0.4 | 60 | 0.3 | 0.08 |
| 110 | 0.70 | 0.4 | 66 | 0.25 | 0.07 |
| 120 | 0.72 | 0.4 | 72 | 0.22 | 0.06 |
| 127 | 0.80 | 0.4 | 75 | 0.21 | 0.05 |
| 152 | 0.90 | 0.4 | 90 | 0.16 | 0.04 |
| 160 | 0.94 | 0.4 | 96 | 0.14 | 0.03 |
| 180 | 1.00 | 0.4 | 108 | 0.12 | 0.02 |
| 203 | 1.21 | 0.4 | 120 | 0.1 | 0.02 |
| 254 | 1.70 | 0.4 | 175 | 0.07 | 0.01 |
| 305 | 2.13 | 0.4 | 210 | 0.05 | 0.01 |
| 350 | 2.50 | 0.4 | 245 | 0.04 | 0.01 |
| 407 | 3.10 | 0.4 | 280 | 0.03 | 0.01 |
| 508 | 4.15 | 0.4 | 400 | 0.02 | 0.01 |
