ALUMINIUM SEMI-RIGID
AIR DUCT
TEMPERATURE 150℃
Structure

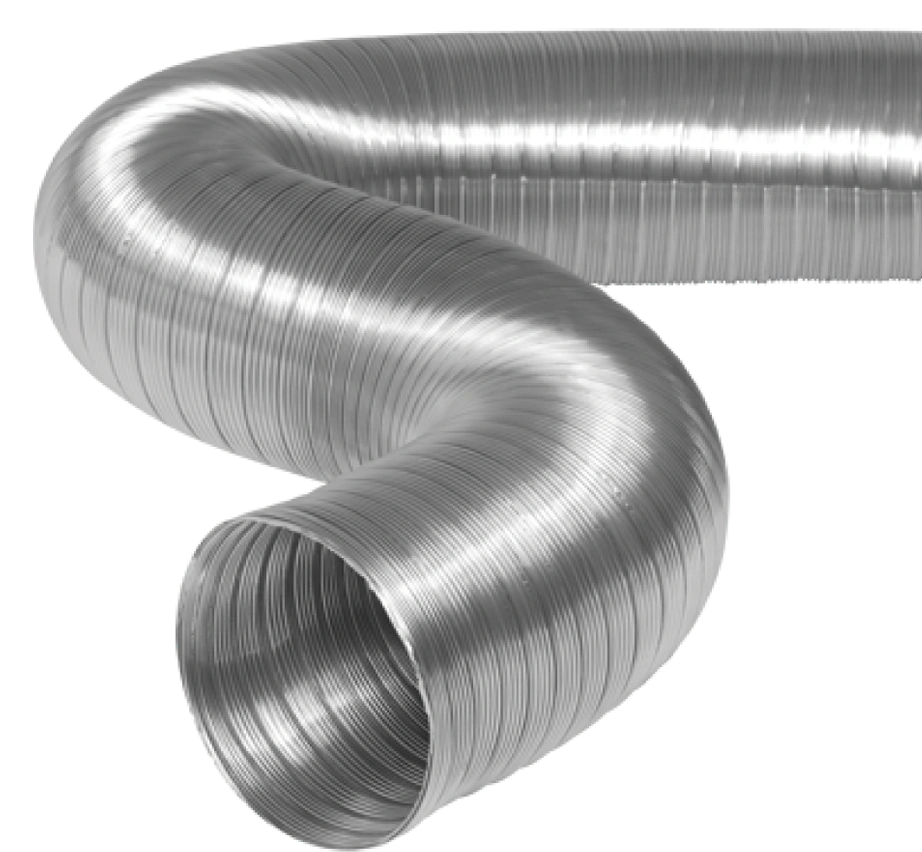

- Aluminium semi flexible air ducts are flexible, extendable and highly reliable for low and medium pressure air conditioning, ventilation, boiler systems and chimney liners.
- Hose is elastic, flexible and stretchable.
- Oval and circular connectors are easily installed.
- Hose is made secured using an “INTERLOCK” crimp system. “INTERLOCK” crimp systems minimize separation of the duct when it is stretched or bent.
PROPERTIES & ADVANTAGES PURE ALUMINIUM BODY
- Non-combustible
- Impermeable to UV rays
- High resistance to UV rays
- Resistant to chemicals
SEMI-FLEXIBLE & INTERLOCK CONSTRUCTION
- Easy to transport & store
- Quick and easy installation
- Inseparable
- Leak proof
- Airtight
- Energy efficient
- Low operation and maintenance cost
Technical Data
| Technical properties | |
|---|---|
| TYPES | Semi Rigid |
| Fire Resistance | Non-Combustible |
| Construction | Pure Aluminium |
| Available Diameters | 50mm - 800mm |
| Temperature Range | -25℃ / +250℃ |
| Air Velocity | 25 m/s (max) |
| Operating Pressure | 2000 Pa (max) |
| Compression Rate | 1/3 |
| Standard Length | 3 Meter |
