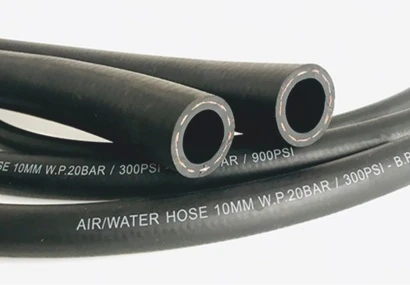

AIR AND WATER HOSE
Structure
- Inner Tube - Modified Nitrile Rubber.
- Reinforcement - Single braid of High tensile synthetic yarn.
- Outer Cover - Abrasion resistant Nitrile / Natural Rubber
Applications
Air and Water applications in industries, Shipyards, Engineering work shops, Estates, Construction work, foundries, garages, steel mills etc.
Temperature Range
-30 ℃ to +82 ℃
Standards
Exceeds I.S. 446 Type - I , I.S. 444 Type - II
Dunlop - Air & Water Hose
Technical Data
GATES
| I.D. Ø (mm) | O.D. Ø (mm) | Working Pressure (kg/cm2) | Bursting Pressure (kg/cm2) | Bending Radius (mm) | Vacuum Pressure (in.Hg) |
|---|---|---|---|---|---|
| 12.50 | 20.0 | 12.0 | 36.0 | 127.0 | 30.0 |
| 20.00 | 28.5 | 12.0 | 36.0 | 152.0 | 25.0 |
| 25.00 | 35.5 | 12.0 | 36.0 | 203.0 | 15.0 |
| 31.50 | 43.5 | 12.0 | 36.0 | 254.0 | 10.0 |
| 38.00 | 50.0 | 12.0 | 36.0 | 304.0 | 8.0 |
| 50.00 | 65.0 | 12.0 | 36.0 | 419.1 | 4.0 |
Dunlop - Air & Water Hose
| I.D. Ø (mm) | O.D. Ø (mm) | Working Pressure (kg/cm2) |
|---|---|---|
| 12.5 | 21 | 12 |
| 19 | 30 | 12 |
| 25 | 37 | 12 |
| 32 | 44 | 12 |
| 38 | 50 | 12 |
| 50 | 61 | 12 |
| 63 | 76 | 10 |
| 75 | 91 | 10 |
| 100 | 115 | 10 |
