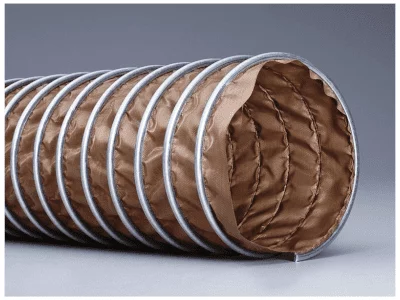

HIGH TEMPERATURE
CLIP PTFE
Temperature : -150℃ to +250℃
Structure
Light weight and very flexible PTFE ducting
Material
PTFE coated glass fabric, brown
Properties
Good temperature and chemical resistance, outer wear strip, good compressibility
Applications
Suction of aggressive chemical fumes and gases in all fields of industry
Temperature Resistance
-150℃ to +250℃
Standard Length
3 to 10 meters
Special construction
PTFE® EL CL – conductive (R < 106 Ohm), conform to TRBS 2153 and ATEX guideline 94/9/EC, black
Technical Data
| I.D. Ø (mm) | Weight (kg/m) | Wall Thickness (mm) | Bending Radius (mm) | Working Pressure (bar) | Vacuum Pressure (bar) |
|---|---|---|---|---|---|
| 50 | 0.40 | 0.12 | 30 | 0.850 | 0.32 |
| 60 | 0.50 | 0.12 | 36 | 0.680 | 0.22 |
| 76 | 0.60 | 0.12 | 45 | 0.470 | 0.14 |
| 80 | 0.63 | 0.12 | 48 | 0.430 | 0.12 |
| 102 | 0.65 | 0.12 | 60 | 0.300 | 0.08 |
| 110 | 0.70 | 0.12 | 66 | 0.250 | 0.07 |
| 120 | 0.72 | 0.12 | 72 | 0.220 | 0.06 |
| 127 | 0.80 | 0.12 | 75 | 0.210 | 0.05 |
| 152 | 0.90 | 0.12 | 90 | 0.160 | 0.04 |
| 160 | 0.94 | 0.12 | 96 | 0.140 | 0.03 |
| 180 | 1.05 | 0.12 | 108 | 0.120 | 0.02 |
| 203 | 1.21 | 0.12 | 120 | 0.100 | 0.02 |
| 254 | 1.70 | 0.12 | 175 | 0.070 | 0.01 |
| 305 | 2.13 | 0.12 | 210 | 0.050 | 0.01 |
| 350 | 2.30 | 0.12 | 245 | 0.040 | 0.01 |
| 407 | 2.90 | 0.12 | 280 | 0.030 | 0.01 |
| 508 | 3.90 | 0.12 | 400 | 0.020 | 0.01 |
