SAND BLAST HOSE
SHOT BLAST HOSE
Structure
- Inner Tube - Abrasion Resistant Conductive special Natural Rubber
- Reinforcement - High tensile synthetic plies with copper wire for grounding
- Outer Cover- Abrasion and heat resistant special natural rubber
Applications
short and sand blasting applications for cleaning metal surfaces, Casting, etching glass, where abrasive materials are conveyed at high velocity with electrical conductivity.
Temperature Range
-40 ℃ to +70 ℃
Standards
IS 5894 : 1980
Type I and Type II
Dunlop - Sand Blasting
Indo - Maksson Sand Blast
Technical Data

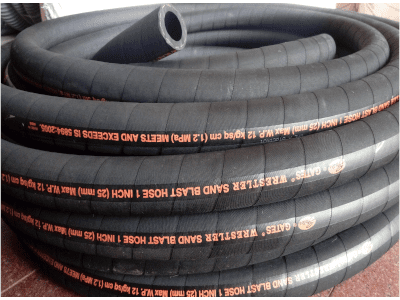

GATES
| I.D. Ø (mm) | O.D. Ø (mm) | Working Pressure (kg/cm2) | Bursting Pressure (kg/cm2) | Bending Radius (mm) | Vacuum Pressure (in.Hg) |
|---|---|---|---|---|---|
| 20.0 | 38.6 | 7.0 | 35 | 203.2 | 15.0 |
| 25.0 | 45.1 | 7.0 | 35 | 304.0 | 5.0 |
| 31.5 | 52.7 | 7.0 | 35 | 304.0 | 5.0 |
| 38.0 | 58.5 | 7.0 | 35 | 457.2 | 5.0 |
| 50.0 | 71.8 | 7.0 | 35 | 508.0 | 5.0 |

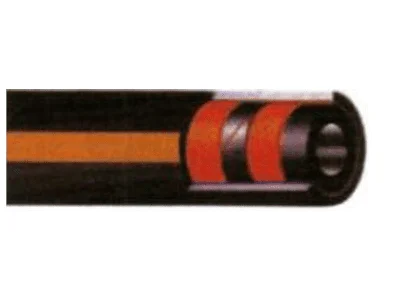

DUNLOP - SAND BLASTING
| I.D. Ø (mm) | O.D. Ø (mm) | Type 1 Working Pressure (kg/cm2) | Type 2 Working Pressure (kg/cm2) |
|---|---|---|---|
| 25 | 44 | 7 | 10 |
| 32 | 48 | 7 | 10 |
| 38 | 57 | 7 | 10 |
| 50 | 70 | 7 | 10 |
| 63 | 86 | 7 | 10 |
| 75 | 99 | 7 | 10 |

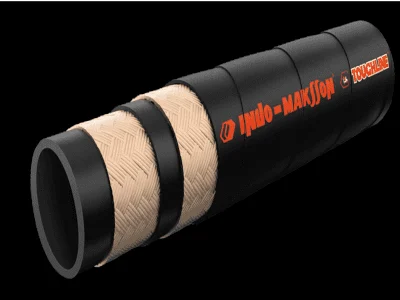

INDO - MAKSSON SAND BLAST
| I.D. Ø (mm) | O.D. Ø (mm) | Working Pressure (bar) | Bursting Pressure (bar) |
|---|---|---|---|
| 20 | 34 | 12 | 36 |
| 25 | 40 | 12 | 36 |
| 31 | 48 | 12 | 36 |
| 38 | 54 | 12 | 36 |
| 50 | 72 | 12 | 36 |
| I.D. Ø (mm) | O.D. Ø (mm) | Working Pressure (bar) | Bursting Pressure (bar) |
|---|---|---|---|
| 12.5 | 24 | 7 | 35 |
| 20 | 35 | 7 | 35 |
| 25 | 41 | 7 | 35 |
| 31 | 47 | 7 | 35 |
| 38 | 58 | 7 | 35 |
| 50 | 70 | 7 | 35 |
