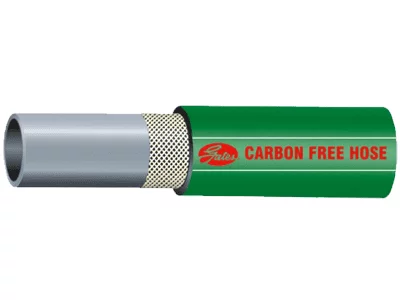

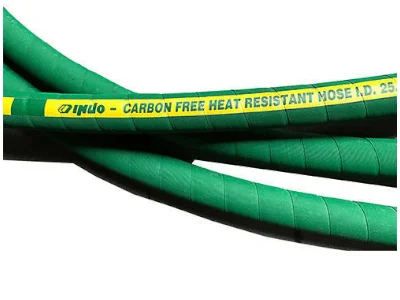

CARBON FREE HOSE
NON - Conductive Hose
Structure
- Inner Tube - Modified synthetic Rubber - Colour Grey
- Reinforcement - High Tenacity synthetic yarn
- Outer Cover- Special Nitrile Rubber Compound - Colour Green
Applications
Ideal for coolant applications in Induction furnaces and other non - conductive uses specially designed for low leakage current ( < 20 micro amp at 6KV DC )
Temperature Range
-40 ℃ to +100 ℃
Technical Data
GATES
| I.D. Ø (mm) | O.D. Ø (mm) | Working Pressure (kg/cm2) | Bursting Pressure (kg/cm2) | Bending Radius (mm) | Vacuum Pressure (in.Hg) |
|---|---|---|---|---|---|
| 12.7 | 21.6 | 17 | 69 | 101.6 | 25.0 |
| 19.8 | 31.0 | 17 | 69 | 127.0 | 25.0 |
| 26.2 | 37.5 | 17 | 69 | 152.4 | 25.0 |
| 32.4 | 45.2 | 17 | 69 | 190.5 | 25.0 |
| 39.2 | 53.6 | 17 | 69 | 203.2 | 20.0 |
| 51.8 | 66.0 | 14 | 56 | 304.0 | 10.0 |
| 63.5 | 81.0 | 14 | 56 | 508.0 | 10.0 |
| 76.2 | 93.5 | 14 | 56 | 635.0 | 5.0 |
